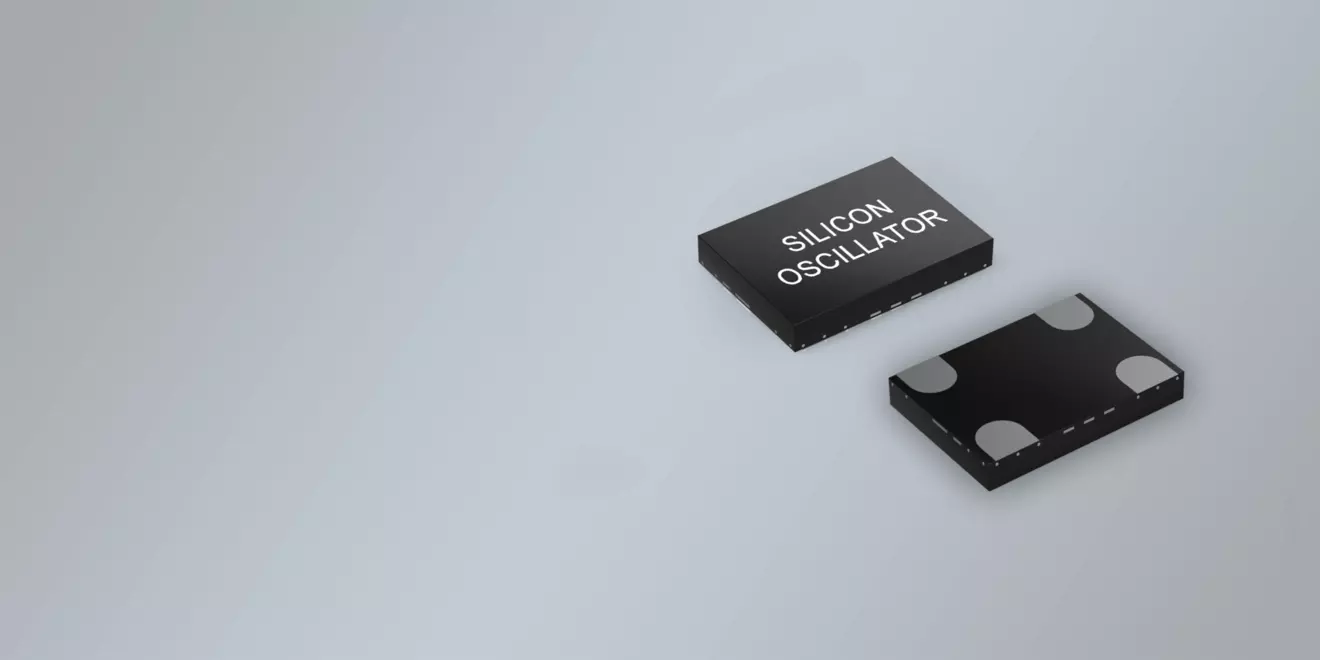

SMD SILIKONOVÉ OSCILÁTORY S VYSOKOU TEPLOTOU 1-137 MHz

  • Stoprocentní přímá náhrada oscilátorů na bázi křemene a MEMS pin-to-pin
  • Vysokoteplotní oscilátor s nízkým výkonem za příznivou cenu
  • Nejvyšší dlouhodobá spolehlivost
  • Vynikající stabilita frekvence ±20 ppm
  • Provozní teplota od -40 °C do 125 °C
  • Expresní dodání vzorku ve stejný den

  • Název produktu

    High Temperature 1 - 137 MHz

  • Pouzdro

    SMD QFN/4pad

  • Rozměry v mm

    2.0 x 1.6 ~ 7.0 x 5.0

  • Rozsah frekvence

    1.00 - 110.00 MHz

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • OPERATING TEMPERATURE RANGE

    -40/+105 ~ -40/+125°C

  • FREQUENCY STABILITY

    ±20 ppm to ±50 ppm

  • SUPPLY VOLTAGE

    1.8 V to 3.63 V

    • Ultra fast lead time

      • Reduce inventory overhead
      • Mitigate shortage risks

    • 5 industry standard package

      • 100% drop in repalcement of quartz XO

    • Programmable drive strength

      • Slower rise/fall time that minimizes EMI from the oscillator
      Lower cost by driving multiple loads and eliminate additional timing components

    • 70 g shock and 50 kg vibration

      • Best system relability in harsh environment

    • 0.1 ppb/g low vibration sensitivity

      • Improved system performance under vibration
      • Simpler carrier drop-test compliance (STB, etc.)

    • Unique combination of product features

      • Better timing margin ideal for space constrained, outdoor and high temp operating environment

    DATASHEET: SMD High Temperature 1-110MHz Silicon Oscillator (HTLPO)

    High Temperature 1-110MHz Silicon Oscillator

    DATASHEET: SMD High Temperature 115-137MHz Silicon Oscillator (HTLPO)

    High Temperature 115-137MHz Silicon Oscillator
