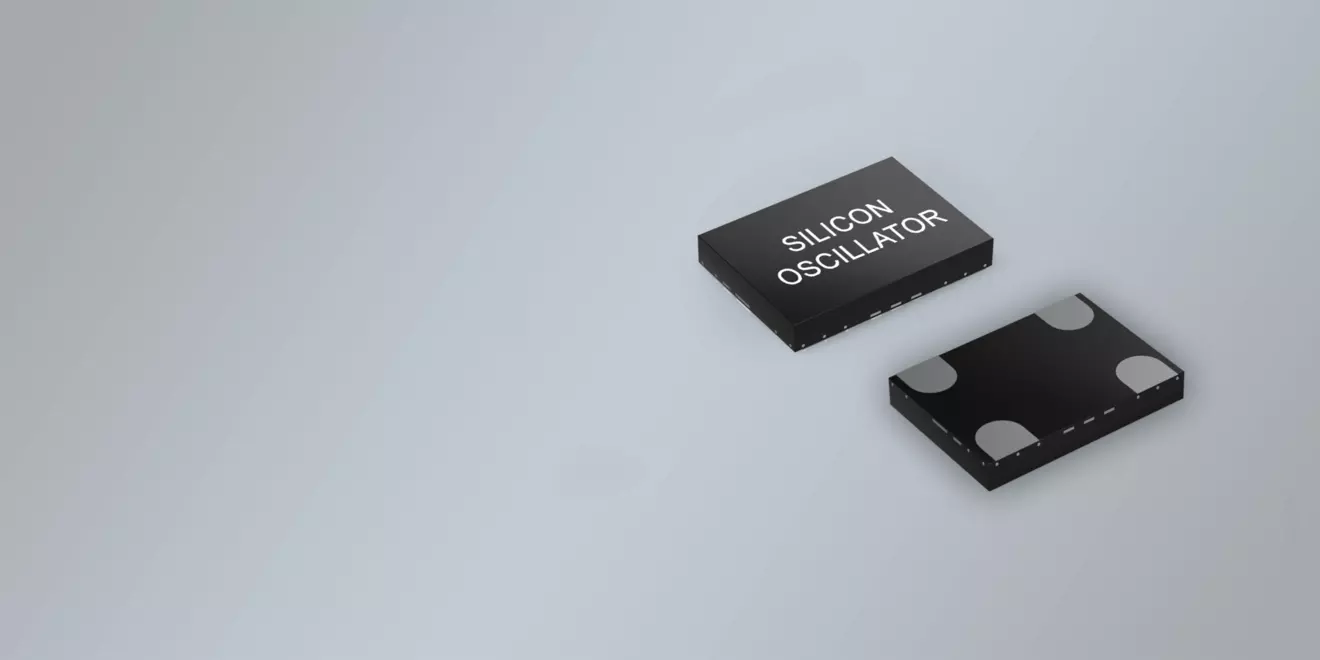

SMD ULTRA VÝKONNÉ 1-220MHz SILIKONOVÉ OSCILLÁTORY
- Velmi výkonný oscilátor za příznivou cenu
- Nízká spotřeba energie a extrémně nízký fázový jitter
- Nejvyšší dlouhodobá spolehlivost
- Vynikající stabilita frekvence ±10 ppm při -40/+85 °C
- Frekvenční rozsah od 1 MHz do 220 MHz s přesností na šest desetinných míst
- Minimální dlouhodobé stárnutí
- Expresní dodání vzorku ještě týž den
Název produktu
UPO
Pouzdro
SMD QFN/4pad
Rozměry v mm
2.5 x 2.0 ~ 7.0 x 5.0
Rozsah frekvence
1.00 - 80.00 MHz
FREQUENCY RANGE 2
80.00 - 220.00 MHz
PRODUCT NAME 2
HFUPO
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesSTORAGE TEMPERATURE RANGE
-55/+125°C
OPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
FREQUENCY STABILITY
±10 ppm to ±50 ppm
SUPPLY VOLTAGE
1.8 V ~ 3.63 V
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
Configurable drive strength
• Slower rise/fall time that minimizes EMI from the oscillator
• Saves cost by driving multiple loads and eliminate additional timing components
Small 2520, 3225, 5032 & 7050 packages for all frequencies, voltages and stability
• Save more board space without compromising performance and availability
• 100% drop in replacement for quartz oscillator, SAW and overtone oscillators without any design changes
Configurable feature sets
• Customized specification for optimal system performance
• Easy availability of any device specifications within the operating range
Excellent frequency stability value, as low as ±10 ppm
• Better timing margin that enhances system stability and robustness
<1ps integrated RMS phase jitter (12 kHz to 20 MHz)
• Excellent jitter margin for the most stringent applications such as SONET
